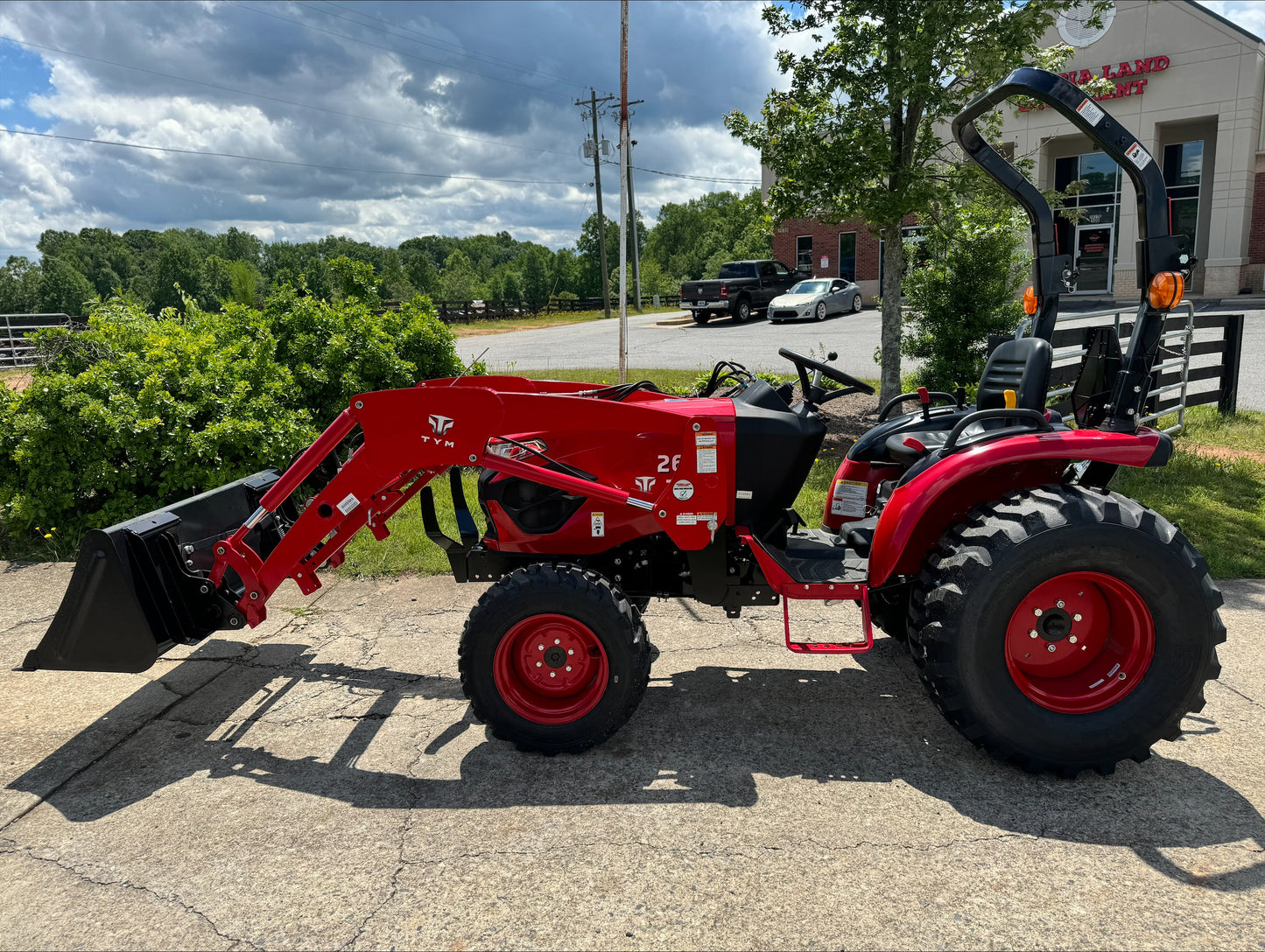

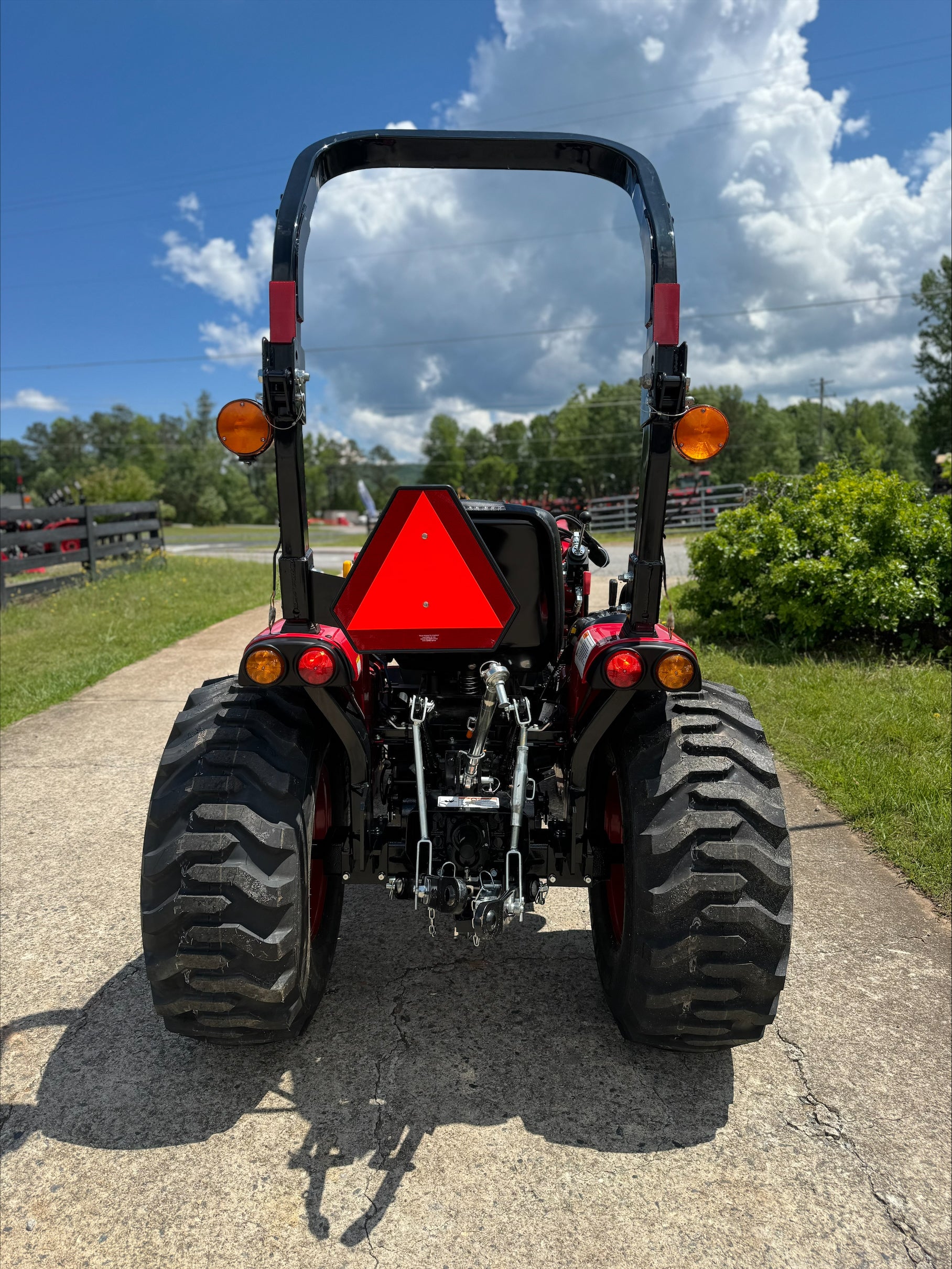

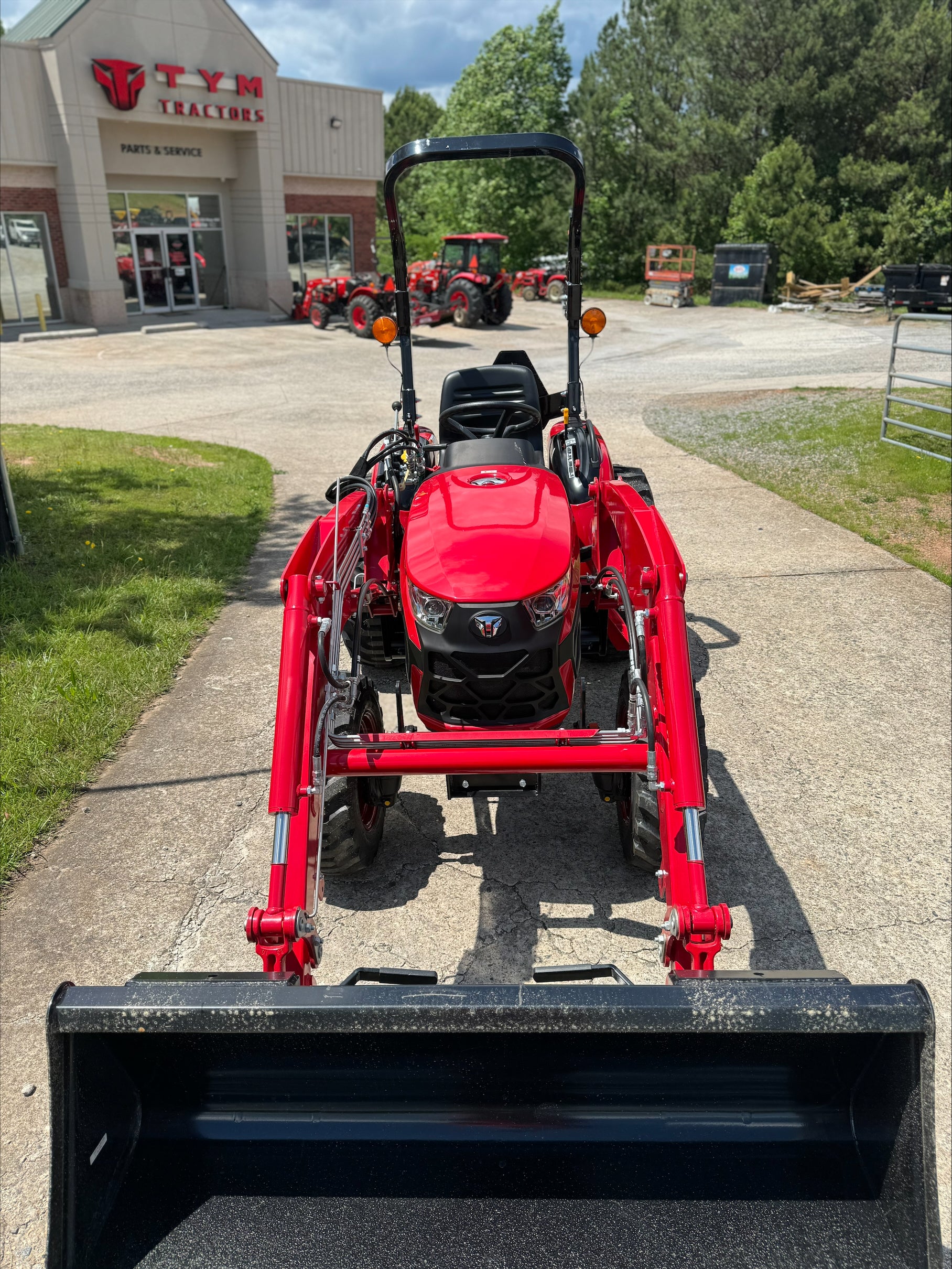

2024 TYM 2610H

2024 TYM 2610H

Vehicle Details
Year: 2024
Make: TYM
Model: 2610H
Color: Red
Condition: New

Options Added
Hydrostatic Transmission
Front End Loader
Industrial Tires
Warranty (see below)

BL110S Loader Specifications
Lift height: 91.1 in
Max. lift height under level bucket: 86.4 in
Clearance with bucket dumped: 69.4 in
Reach at maximum lift height: 23.4 in
Max. dump angle: 48 Degrees
Lift capacity: 1,373 lb
Breakout force at ground level, pivot points: 2,077 lb
Bucket capacity: 5.3 cu. ft
Overall height in carry position: 43.9 in
Loader total weight: 654 lb
Lift cylinder: 1.8X1.2 in
Bucket cylinder: 2.0X1.2 in
Boom raising time: 4.3 sec
Boom lowering time: 2.4 sec
Bucket rollback time: 2.7 sec
Bucket dumping time: 4.2 sec

Industrial Tire Specifications
Front R4: 25x8.50-14
Rear R4: 14-17.5

Engine
TYM A1100N2 IDI NA
3-Cylinder Diesel
24hp @ 2800 RPM
PTO: 18 HP

Powertrain & Specs
Power Steering, Single Gear Pump
Wet Disc Brakes
Selectable Four Wheel Drive
Category I Three Point Hitch, 1,499 lbs Capacity
540RPM Live PTO
6.0 Gallon Fuel Capacity
60A Alternator, 12V System

Weights
Tractor: 2,106lbs
Loader: 654lbs
Total Weight: 2,760lbs
