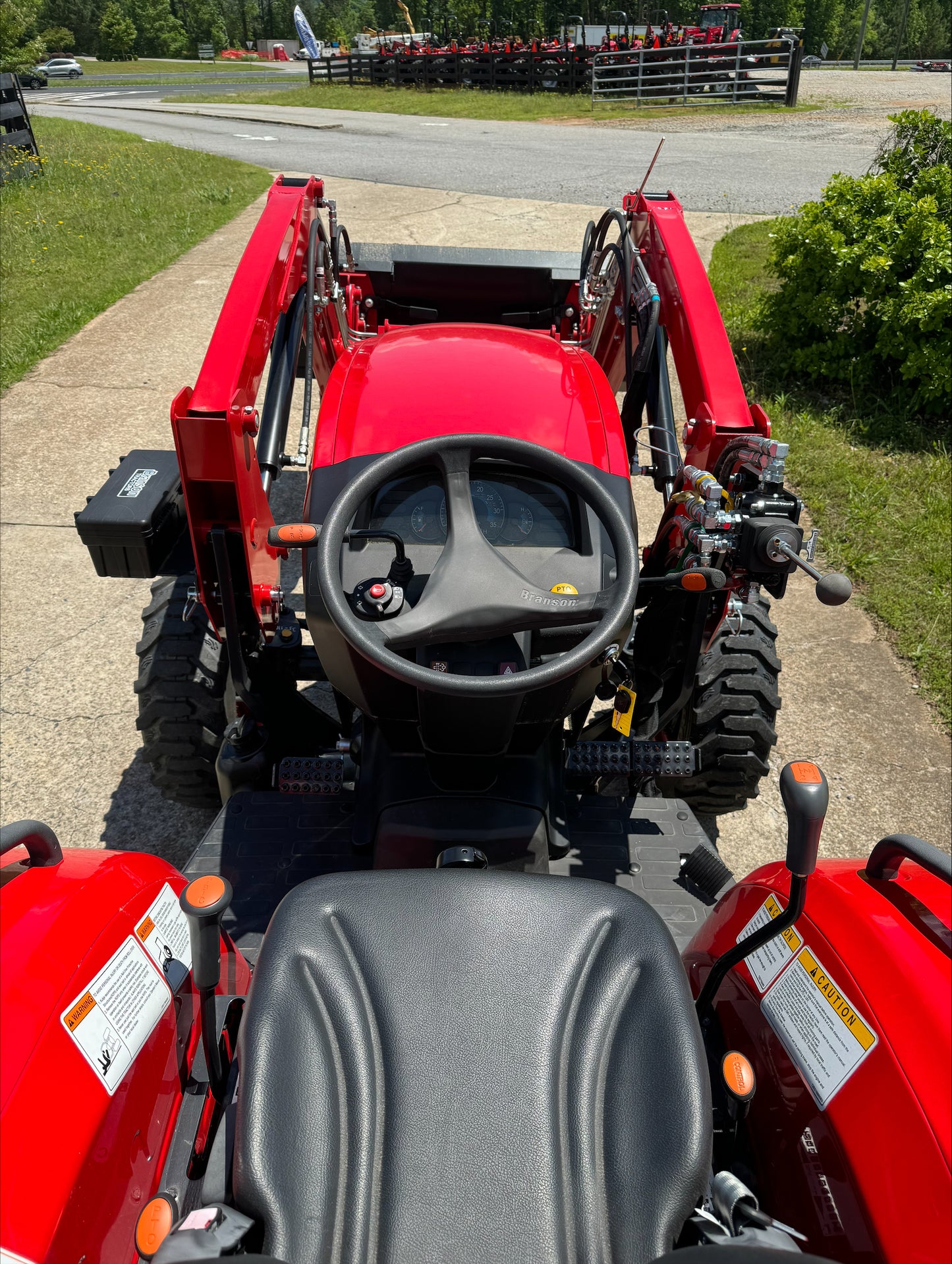

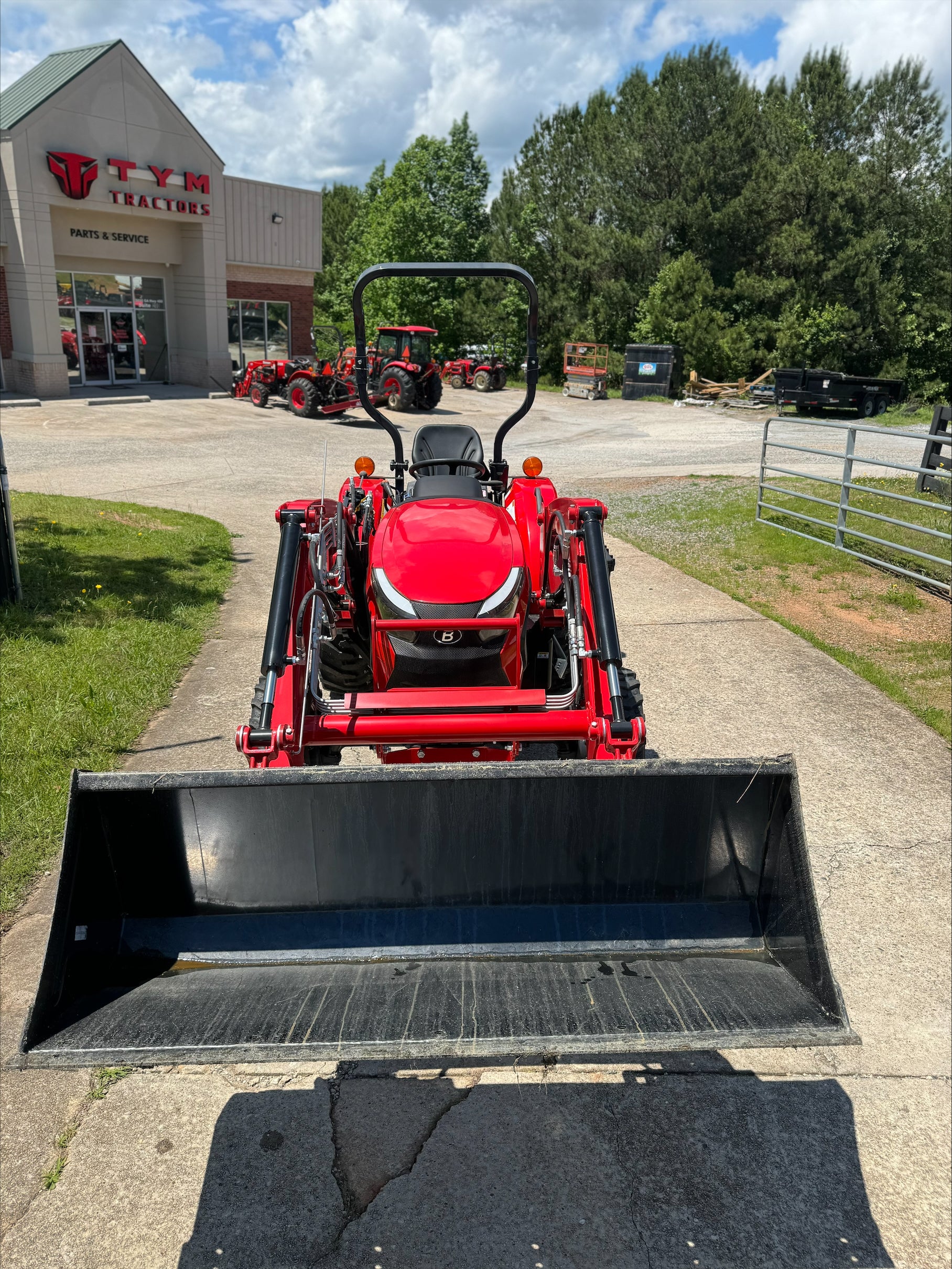

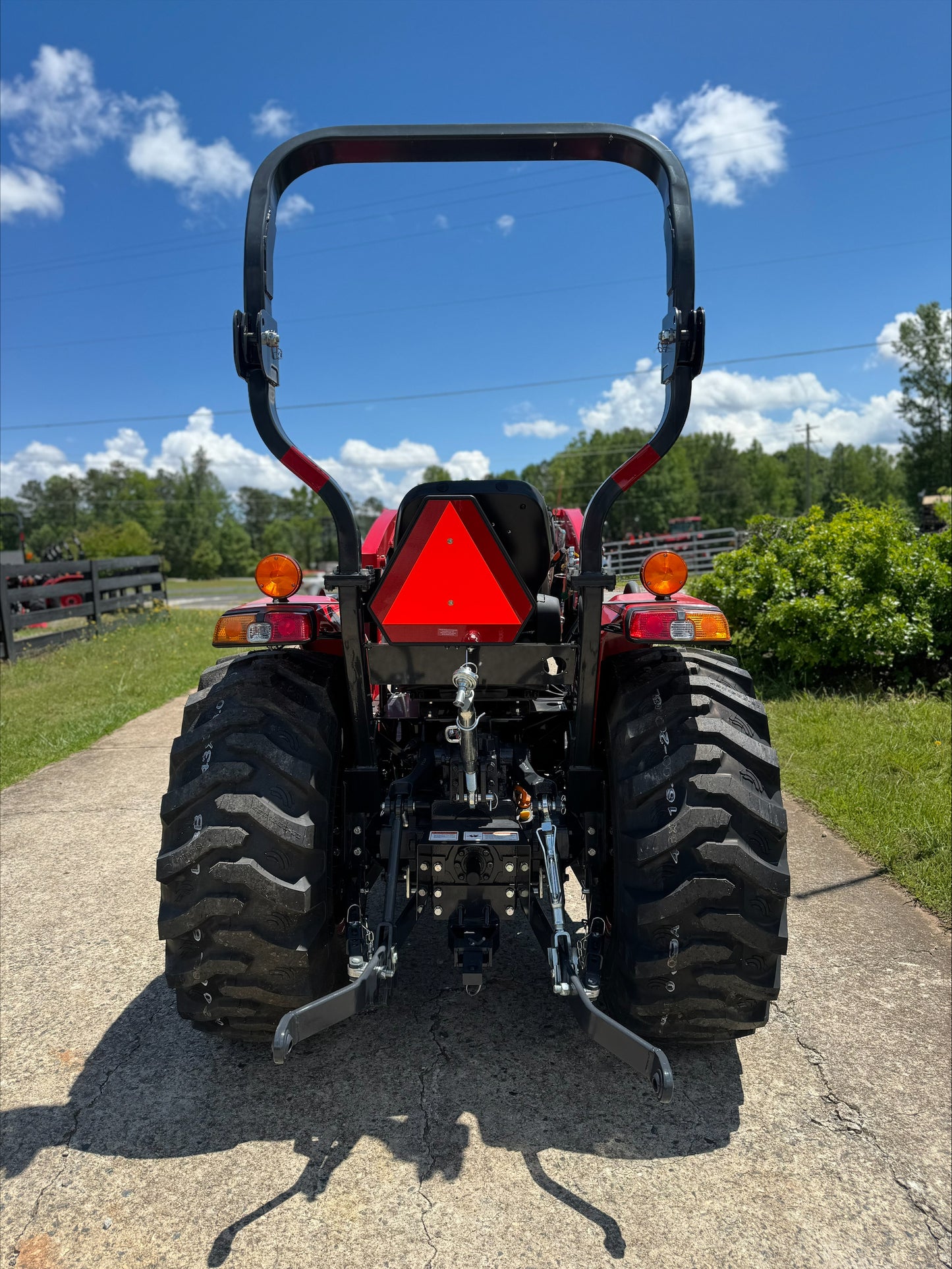

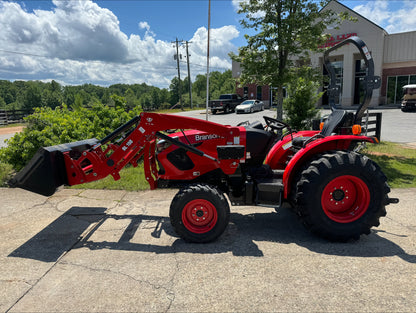

2024 TYM 3515R

2024 TYM 3515R

Vehicle Details
Year: 2024
Make: TYM
Model: 3515R
Color: Red
Condition: New

Options Added
Gear Transmission (Synchromesh)
Front End Loader
Industrial Tires
Warranty (see below)

BL150 Loader Specifications
Lift height: 104.9 in
Max. lift height under level bucket: 96.3 in
Clearance with bucket dumped: 77.0 in
Reach at maximum lift height: 15.9 in
Max. dump angle: 55 Degrees
Lift capacity: 2,200 lb
Breakout force at ground level, pivot points: 3,422 lb
Bucket capacity: 8.1 cu. ft
Overall height in carry position: 51.0 in
Loader total weight: 1,008 lb
Lift cylinder: 2.2X1.2 in
Bucket cylinder: 2.0X1.2 in
Boom raising time: 4.4 sec
Boom lowering time: 3.1 sec
Bucket rollback time: 2.6 sec
Bucket dumping time: 4.2 sec

Industrial Tire Specifications
Front R4: 28x8.50-15
Rear R4: 43x16.00-20

Engine
TYM A1100N2 IDI NA
3-Cylinder Diesel
35hp @ 2600 RPM
PTO: 30 HP

Powertrain & Specs
Power Steering, Single Gear Pump
Wet Disc Brakes
Selectable Four Wheel Drive
Category I Three Point Hitch, 3,306 lbs Capacity
560 RPM Independent PTO
7.1 Gallon Fuel Capacity
50A Alternator, 12V System

Weights
Tractor: 3,183lbs
Loader: 1,008lbs
Total Weight: 4,171lbs
